Architecture

This chapter describes XCSoar’s internal code architecture.

Source Organisation

XCSoar’s source code is stored in the src directory. This section tries to give a rough overview where you can find what.

  • util/: generic C++ utilities that do not depend on external libraries, such as data structures, string operations

  • Math/: math data types (fixed-point math, angles) and generic formulas

  • Geo/: geographic data structures and formulas

  • Formatter/: code that formats internal values to strings

  • Units/: conversion from SI units (“System” units) to configured user units

  • NMEA/: data structures for values parsed from NMEA

  • Profile/: user profiles, loading from and saving to

  • IGC/: support for the IGC file format

  • Logger/: all loggers (NMEA, IGC, flights)

  • thread/: multi-threading support (OS specific)

  • ui/: base library for the graphical user interface

  • Renderer/: various graphical renderers, for map and analysis

  • MapWindow/: the map

  • Form/: modal dialogs and their controls (based on the screen library)

  • Dialogs/: modal dialogs implementations (based on the form library)

  • net/: networking code (OS specific)

  • Operation/: generic code to support cancellable long-running operations

  • Android/: code specific to Android (the native part only; Java code is in android/src/

  • Engine/PathSolvers/: an implementation of Dijkstra’s path finding algorithm, for task and contest optimisation

  • Engine/Airspace/: airspace data structures and airspace warnings

  • Engine/Waypoint/: waypoint data structures

  • Engine/GlideSolvers/: a MacCready implementation

  • Engine/Task/: task data structures and calculations

  • Engine/Contest/: contest optimisation

  • Engine/Route/: the route planner (airspace and terrain)

Threads and Locking

Threads

XCSoar runs on multiple threads, to make the UI responsive but still allow expensive background calculations.

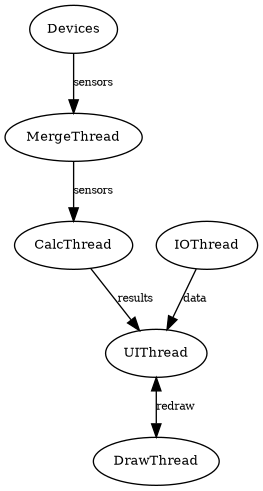

This is how it looks like on Windows and Linux/SDL (software rendering):

The UI thread is the main thread. It starts the other threads and is responsible for the UI event loop. No other thread is allowed to manipulate windows. The UI thread has a timer which does regular house keeping twice per second (ProcessTimer.cpp).

The calculation thread (CalculationThread.cpp, GlideComputer*.cpp) does all the expensive calculations in background. It gets data from the devices (through MergeThread) and forwards it together with calculation results to the drawing thread and the main thread.

Each device has its own thread (SerialPort.cpp). This is needed because Windows CE does not support asynchronous COMM port I/O. The thread is stopped during task declaration (which happens in the UI thread).

When new data arrives on the serial port, the MergeThread gets notified, which will merge all sensor values into one data structure. It will then run cheap calculations, and forwards everything to the CalculationThread.

With OpenGL, the map is rendered live without a buffer. There is no DrawThread.

On Android, the UI thread is not the main thread - the main thread is implemented in Java, managed by Android itself. The UI thread listens for events which the Java part drops into the event queue (NativeView.java and others). The internal GPS does not need a thread, it is implemented with Java callbacks. For Bluetooth I/O, there are two threads implemented in Java (InputThread.java and OutputThread.java, managed by BluetoothHelper.java).

Locking

Some data structures are rarely modified. There is no lock for them. For a modifications, all threads must be suspended. Example: waypoints, airspaces.

Other data structures are modified so often that correct locking would be too much overhead. Each thread and each instance has its own copy. The lock needs to be obtained only for making the private copy. The private copy can be used without locking. Example: NMEA_INFO, DERIVED_INFO.

There are objects which are too expensive to copy. Normal locking applies to them. We have a template class called Guard to enforce proper read/write locking. Example: the task.

Accessing Sensor Data

Much of XCSoar deals with obtaining sensor data and visualising it.

Suppose you want to write a dialog that needs the current GPS location, where do you get it? The short and simple answer is: from CommonInterface::Basic() (the InterfaceBlackboard). Example:

#include "Interface.hpp"

...
  const auto &basic = CommonInterface::Basic();
  if (basic.location_available)
    current_location = basic.location;

This is true for the main thread (aka the “user interface thread”). Other threads must not use the Interface.hpp library, because the InterfaceBlackboard is not protected in any way. It contains copies of various data structures just for the main thread.

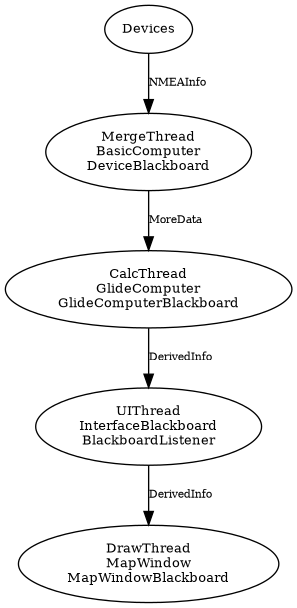

This is how sensor data moves inside XCSoar:

The device driver parses input received from its device into its own NMEAInfo instance inside DeviceBlackboard (i.e. per_device_data). Then it wakes up the MergeThread to merge the new data into the central NMEAInfo instance. The MergeThread hosts the BasicComputer which attempts to calculate missing data (for example, derives vario from GPS altitude).

The CalculationThread wakes up and receives the MoreData object from DeviceBlackboard. Here, expensive calculations are performed (GlideComputer: task engine, airspace warnings, …), resulting in a DerivedInfo object. The CalculationThread runs no more than twice per second.

Finally, the UI thread wakes up and receives MoreData and DerivedInfo via DeviceBlackboard. This updates InfoBoxes and other UI elements. On Windows, the map is drawn in a separate thread, so there’s another layer.

Let’s get back to the question: where do I get sensor data? That depends on who you are:

  • you are the user interface: (InfoBoxes, dialogs, any Window callback): InterfaceBlackboard (see above). To get notified on changes, register a BlackboardListener (and don’t forget to unregister it).

  • you are the MapWindow: depends! If you’re being called from OnPaintBuffer (i.e. inside the DrawThread), you must use the MapWindowBlackboard, all others must use the InterfaceBlackboard.

  • you are a “computer” library: you will get the values as a parameter. Don’t try to use the GlideComputerBlackboard directly.

  • you are a device driver: implement the method OnSensorUpdate or OnCalculatedUpdate if you need to know values from other devices or calculation results.

  • everybody else may use the DeviceBlackboard, but be sure to lock it while using its data.

Debugging XCSoar

The XCSoar source repository contains a module for the GNU debugger (gdb). It contains pretty-printers for various XCSoar types, including Angle, GeoPoint and others. These are helpful when you print values in the debugger. To use it, start the debugging session and load the module:

$ gdb -ex "source tools/gdb.py" output/UNIX/bin/xcsoar
(gdb) run

The module will automatically convert fixed-point to floating point, radian angles to degrees and more. You can now do fancy stuff like:

(gdb) p basic.location
$1 = GeoPoint(7.93911242887 51.1470221074)
(gdb) p basic.date_time_utc
$2 = DateTime(2012/12/23 21:41:57)
(gdb) p basic.track
$3 = 55.2254197961
(gdb) p basic.external_wind
$4 = GeoVector::ZERO
(gdb) p current_leg.vector_remaining
$5 = GeoVector(267.899420345 107957.109724)

General

  • Minimise the number of colours, and re-use colour groups already defined.

  • Too much use of colour where it is not required serves only to reduce the effectiveness of bright colours for important items.

  • High colour saturation elements should be reserved for high importance items

  • High contrast against background should be reserved for high importance items

  • Attempt to adopt colours that are intuitive based the function of the item

  • Minimise the clutter where possible — readibility is essential for use in flight

  • Use colours defined in Graphics according to functional name, not their actual colour.

  • Try to maintain consistent use of colours in all uses of that function, such as dialogue graphics as well as map overlays and infoboxes.

  • Text should always be monochrome.

Use aviation conventions or adopt best aviation human factors standards where possible, in particular:

Check for performance with respect to colour blindness. This site has a useful tool that can be used to convert screenshots to how they would look to a person with common color blindness: http://www.etre.com/tools/colourcheck/

For safety purposes, avoid use of elements that may encourage or require the user to stare at the screen continuously.

For safety purposes, avoid user controls that have significant risk of producing unsafe results if misconfigured by the pilot.

General colour conventions

Colour conventions generally in use throughout the program:

  • Red for indicator of warning

  • Orange for indicator of caution

  • Green for positive indicator of safety

  • Blue for neutral indicator of safety

Displayed data

  • Where data is invalid, indicate this by not presenting the data or showing dashes.

  • Present data in user-defined units.

  • Display numerical data with significant digits appropriate to the accuracy of the calculations, or its functional use by the pilot, whichever is lower.

Dialogs and menu buttons

Colors

Colour conventions in use are:

  • Grey for buttons

  • Buttons and other widgets rendered with an evenly shaded border

  • Yellow for clicked items

  • Light blue for the key focused item

  • Medium blue for dialogue title bar

  • Text is black if the item is enabled

  • Text is greyed out (but still visible) if the item is disabled

dialogue types and navigation buttons

There are four types of dialogs in XCSoar, and the navigation buttons for each are different. Navigation buttons are the Close, OK, Cancel and Select buttons.

  • Dialogs that modify and save data when the dialogue closes.

    These shall usually have a Close button (no Cancel) and may have context specific function buttons

  • Dialogs that modify data where Cancel would be important for the user.

    These shall have OK and Cancel buttons. This may include dialogs with children dialogs where hitting Cancel from the parent dialogue cancels all the changes made in the children dialogs

  • Dialogs that have a list of values, one of which can be selected to return to the parent dialogue.

    These shall have Select and Cancel buttons

  • Dialogs that display information that cannot be modified.

    These shall have a Close button

dialogue button placement and size

  • The Close and Cancel buttons will never appear in the same dialogue and are always located in the same place. This location will be:

    For portrait: lower right

    For landscape: lower left

  • The Select button will be accompanied with a Cancel button. The locations will be:

    For portrait: Select in lower left, Cancel in lower right

    For landscape: Cancel in lower left, Select immediately above it

  • Buttons will be 35 (scaled) pixels high

  • Buttons will be flush with the bottom of the screen and with the sides of the screen and against each other (no margins)

  • In portrait, buttons will be 33

  • In landscape, buttons will be 65 to 80 (scaled) pixels wide, as wide as the frame permits. They will generally be a vertical row of buttons flush left of the screen

  • If text won’t fit on a button, the buttons can be made larger consistently for a screen, but this should be the exception because if it must contain that much text consider using a different type of control.

  • Exceptions to all the dialogue concepts above are encouraged, but should be mocked up and reviewed with the development community prior to implementing and possibly documenting in the developers guide.

Usability

  • Minimum size of buttons should be X by Y mm

  • Ensure all dialogs are navigable using cursor keys only

  • Ensure the focussed item is clearly identified. The rectangle of the widget on the canvas may be drawn using the fill_focus method of Canvas.

Main graphics

Colors

Colour conventions in use, in order of priority, are:

  • Aircraft black and white, for neutrality but clear identification

  • Traffic (FLARM) use alarm green, orange, and red.

  • Lift is vibrant green, sink is copper orange.

  • Aircraft navigation (route, best cruise track) is (ICAO) dark purple-blue

  • Task navigation lines and areas are (ICAO) magenta.

  • Updraft sources and other updraft derived data is sky blue.

(Todo) airspace alert colours

Map culture (topography) and terrain rendering should conform to ICAO Annex 4 where appropriate. Note that some modifications are reasonable for electronic use given that Annex 4 deals with paper charts. Nevertheless, the colour conventions are useful to adopt as they are likely to be intuitive and are designed for aviation use.

Pen styles

  • Map culture should be rendered with a thin pen

  • Thicker pens used for important (e.g. task, navigational, airspace) lines

  • Dashed lines are used to increase perceptual priority

Map overlays

Elements on the map that are not part of the map layer, such as additional informational widgets (final glide bar, wind, north arrow) should be rendered so as to help those elements be visually separated from the map:

  • Generally adopt higher contrast (higher colour saturation or darker shade) than the background map layer elements.

  • For elements covering an area (non line), draw the entire element or a border with a luminosity contrasting pen, of width IBLSCALE(1).

  • Consider whether the widget is required in all flying states and display modes. if it does not serve a direct functional purpose in some states/modes, do not render it.

  • Avoid locating widgets at the aircraft symbol (ownship symbol). It is important to keep this area clear so the aircraft symbol can be easily found.

Elements that may be rendered over each other should be organised in order of priority, particularly with alert warning items above caution items above non-alert items.

Terminology

Glide Ratio

’Glide ratio’ is a non-specific term which can refer to the ratio of horizontal to vertical motion with reference to either the surrounding airmass or the ground.

To reduce confusion, ground-referenced glide ratios (eg distance travelled over ground vs altitude lost) should be referred to by the term ’glide ratio over ground’ when space allows, or ’glide ratio’ / ’GR’.

Air-referenced glide ratios (eg airspeed vs sink rate) should be specified as ’lift/drag ratio’ / ’L/D ratio’ / ’LD’. The lift/drag ratio is numerically equal to the air-referenced glide ratio when flying at constant speed.

If usage spans both air-referenced and ground-referenced glide ratios, the non-specific term ’glide ratio’ / ’GR’ should be used. ’Lift/drag ratio’ should never be used to refer to ground-referenced glide ratios.
